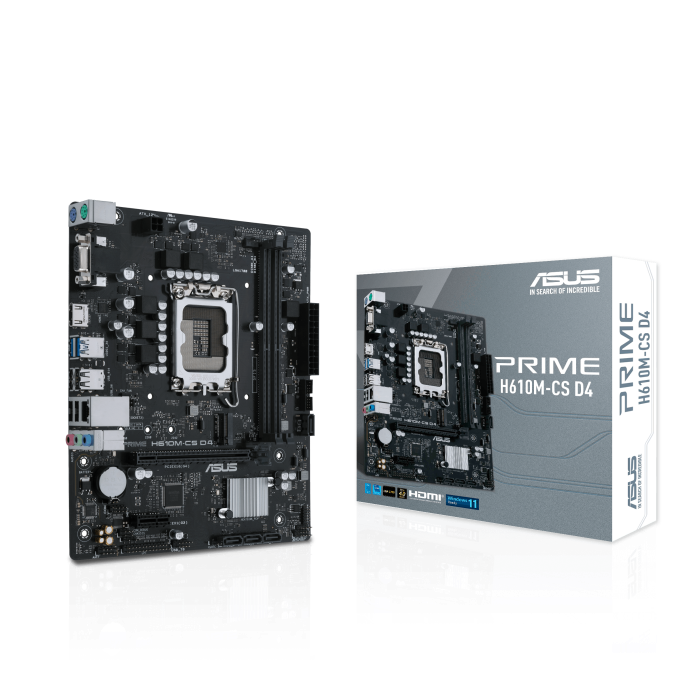

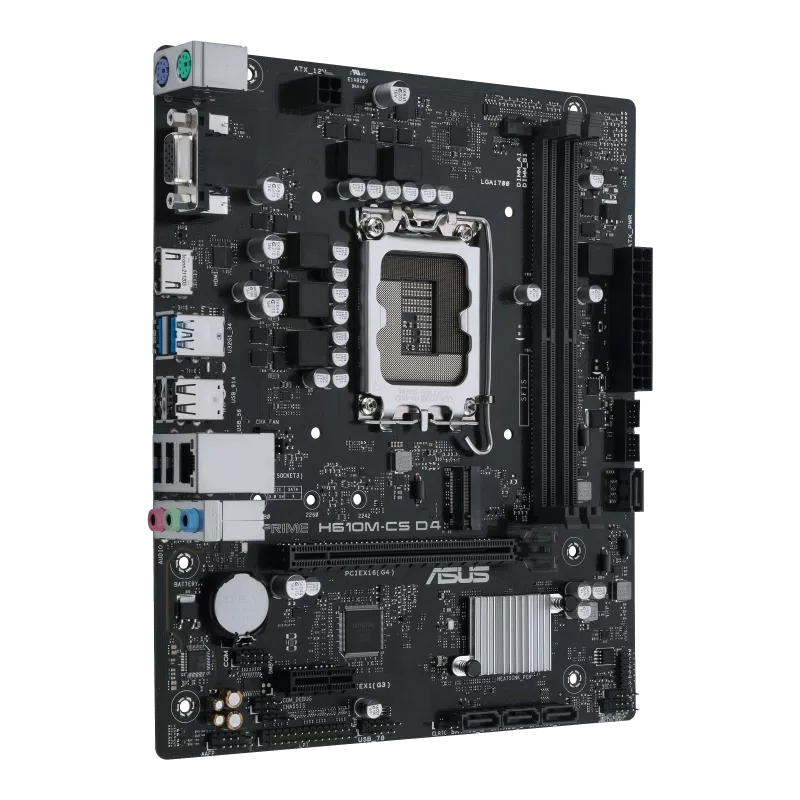

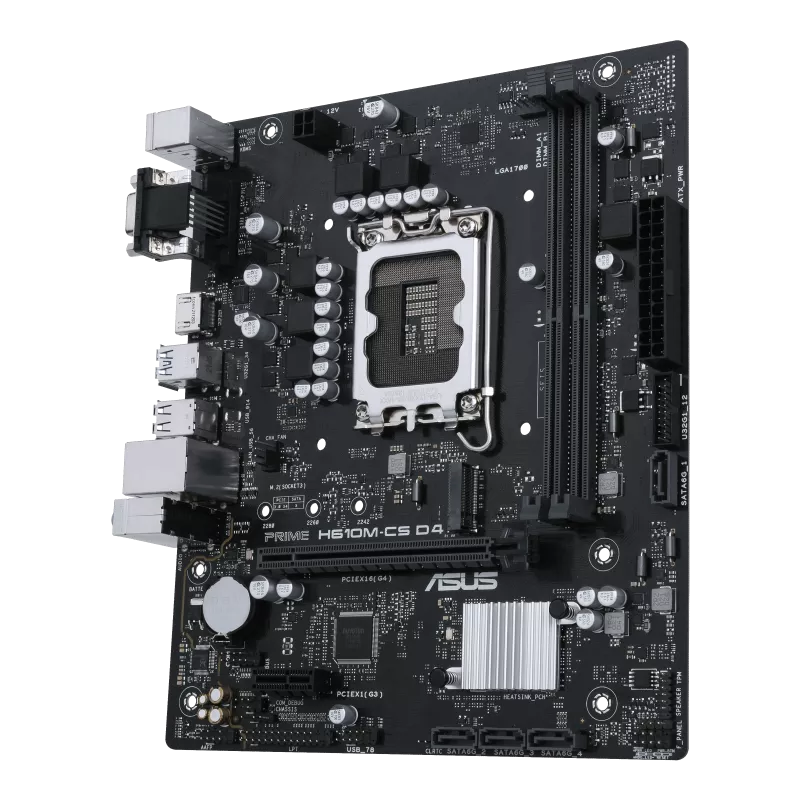

MAINBOARD ASUS PRIME H610M-CS D4 (LGA1700/DDR4)

 CPU Support

• Socket: LGA 1700

• Compatible Processors: Intel Core i9/i7/i5/i3 (12th, 13th, 14th Gen), Pentium Gold, Celeron

• Power Support: Up to 65W CPUs

• Turbo Boost: Supports Intel Turbo Boost Technology 2.0 and 3.0

 Chipset

• Model: Intel H610

• PCIe Support:

  • 1 x PCIe 4.0 x16 (CPU)

  • 1 x PCIe 3.0 x1 (Chipset)

 Memory

• Slots: 2 x DIMM

• Maximum Capacity: 64GB DDR4

• Supported Speeds: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz

• Architecture: Dual Channel

• XMP Support: Yes

 Graphics Outputs

• Ports:

  • 1 x D-Sub

  • 1 x HDMI (supports 4K at 60Hz)

• Note: Graphics specifications may vary between CPU types

 Expansion Slots

• PCIe Slots:

  • 1 x PCIe 4.0 x16 (CPU)

  • 1 x PCIe 3.0 x1 (Chipset)

• M.2 Slot:

  • 1 x M.2 (Key M, 2242/2260/2280)

  • Supports PCIe 3.0 x4 and SATA modes

• SATA Ports:

  • 4 x SATA 6Gb/s

 Networking

• LAN: 1 x Realtek 1Gb Ethernet

 Audio

• Codec: Realtek 7.1 Surround Sound High Definition Audio

• Features:

  • Jack-detection

  • Multi-streaming

  • Front Panel Jack-retasking

  • Supports up to 24-Bit/192 kHz playback

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layersmanualslib.com

 USB Ports

• Rear I/O:

  • 2 x USB 3.2 Gen 1 (Type-A)

  • 4 x USB 2.0 (Type-A)

• Front Panel Headers:

  • 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports)

  • 1 x USB 2.0 header (supports additional 2 USB 2.0 ports)

 Form Factor

• Type: Micro-ATX

• Dimensions: 22.6 cm x 19.3 cm


 Special Features

• Protection: ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)

• Design: Luminous anti-moisture coating

• Cooling: Comprehensive cooling with PCH heatsink

• Software: ASUS Armoury Crate, AI Suite 3, CPU-Z, WinRAR, Norton (trial)
