| Model |

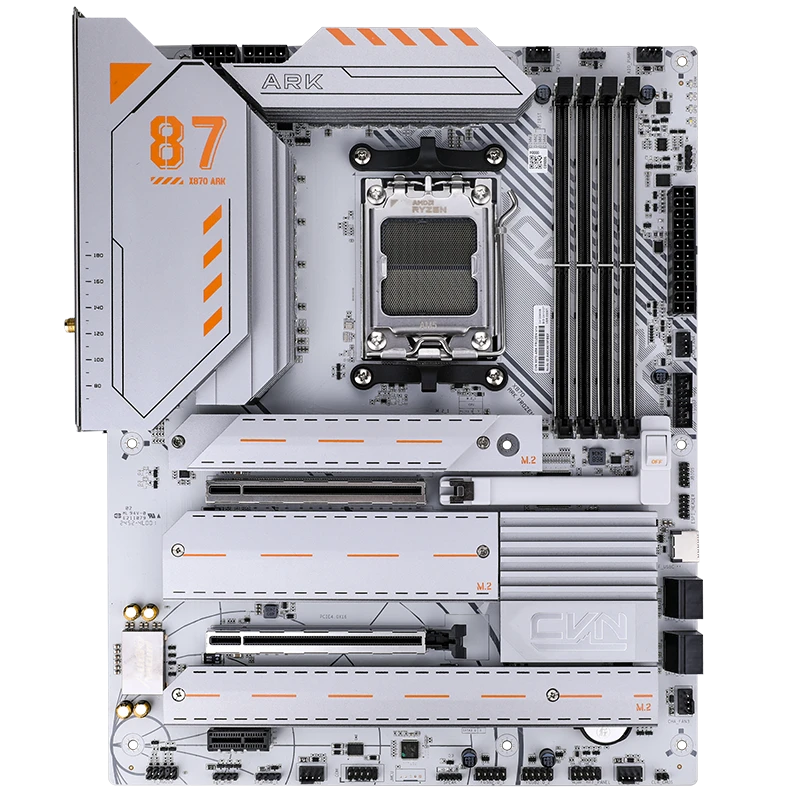

CVN X870 ARK FROZEN V14 |
| Product Series |
CVN Series |
| Chipset |
AMD X870 |
| Processor |
Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
(*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory |
4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-8200 (OC)/8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports |
Supports 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, supporting the creation of RAID 0 and RAID 1 disk arrays using M.2 NVMe hard disk devices
- M.2_1 slot: supports M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) of 2242/2260/2280/22110 specifications
- M.2_2 slot: supports M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) of 2242/2260/2280/22110 specifications
- M.2,3 slot: supports M.2 SSDs (PCIe 4.0 x4, PCH channel) of 2242/2260/2280 specifications
(* Whether PCIe 5.0 is supported depends on the CPU matched with the motherboard)
(* When PCIe 4.0 x4 slot is connected to the device, M.2.3 Slot will be blocked) |
| Board I/O |
Rear I/O interface:
-2 USB 2.0 interfaces
-4 USB 3.2 Gen 1 5Gbps Type-A interfaces
-1 USB 3.2 Gen 2 10Gbps Type-C interface
-1 USB 4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
-1 DP 1.2 interface, up to 4K 60Hz resolution
-1 HDMI 2.0 interface, up to 4K 60Hz resolution
-1 5G network interface
-2 Wi Fi 7 antenna interfaces
-5 audio interfaces (audio input/output/microphone)
- fiber optic audio output interface
-1 BIOS update button
onboard device interface:
-2 USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1 USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
-1 USB 3.2 Gen 2 Type-C Slot expandable with 1 USB 3.2 Gen 2 10Gbps Type-C interface
-1 CPU fan pin
-4 system fan pins
-1 water-cooled pump pin
-3 5V 3-pin ARGB pins
-1 12V 4-pin RGB pin
-1 front audio pin
-1 front panel pin
-1 speaker pin
-1 serial port pin
-1 clear CMOS jumper
-1 BIOS programmer pin
-1 diagnostic card pin |
| Expansion Slots |
1 PCIe 5.0 x16 slot
1 PCIe x16 slot (supports PCIe 4.0 x4 specification)
1 PCIe 3.0 x1 slot
(* When PCIe 4.0 x4 slot is connected to a device, M.2.3 slot will be shielded) |
| BIOS |
256M UEFI, support multiple languages |
| Power Management |
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor |
CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN |
RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4
(*Wi Fi functionality may vary depending on the operating system.
-For Windows 11, Wi Fi 7 will require 24H2 or later versions to support full functionality, while Windows 11 21H2/22H2/23H2 only supports Wi Fi 6E.
-For Windows 10, only Wi Fi 6 is supported.
-Wi Fi 6GHz frequency band and bandwidth regulations may vary by country/region.
-Bluetooth ® The version may be changed, please refer to the latest instructions on the Wi Fi module manufacturer's website.) |
| Audio |
Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration |
ATX
305mm x 245mm |
