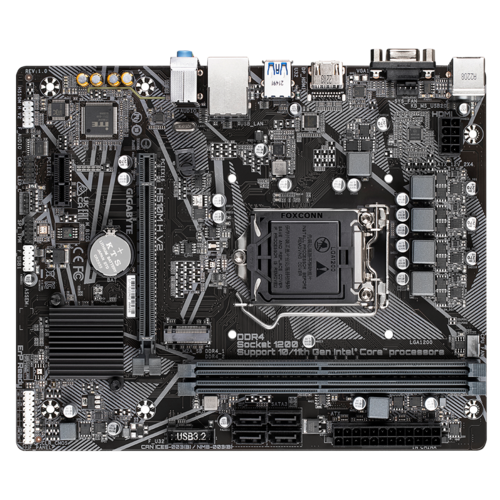

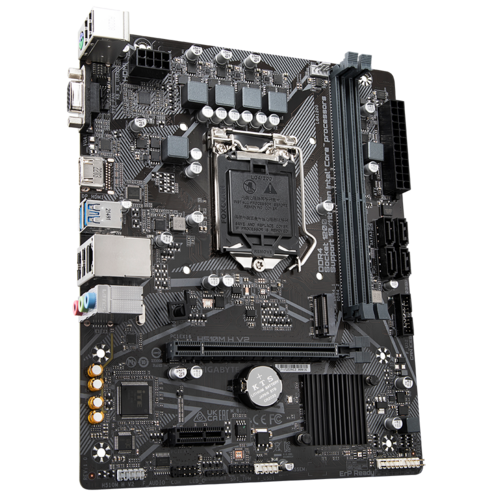

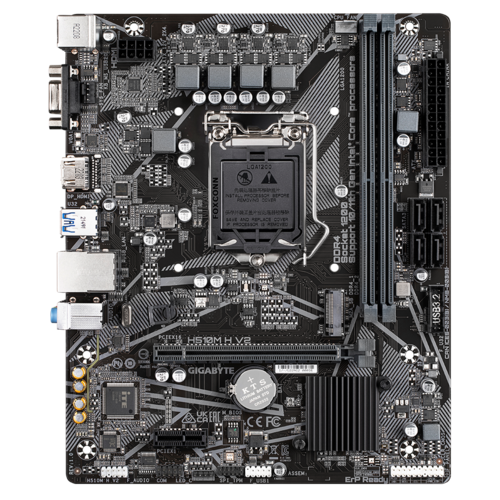

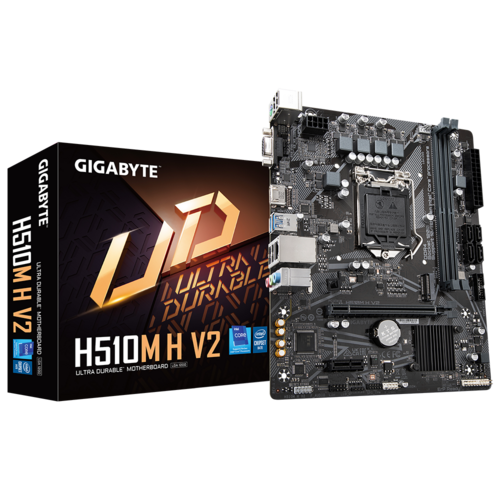

1200 GIGABYTE H510M H V2 DDR4

LGA1200 package:

1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
3. L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

1. Intel® H470 Express Chipset

1. 11th Generation Intel® Core™ i9/i7/i5 processors:
   Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.
2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   * The D-Sub port is only available with the 10th Generation processors.

(Graphics specifications may vary depending on CPU support.)

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for NVMe SSD storage devices
* Supported only with an additional PCIe to M.2 NVMe SSD adapter card and Intel® NVMe SSD.
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

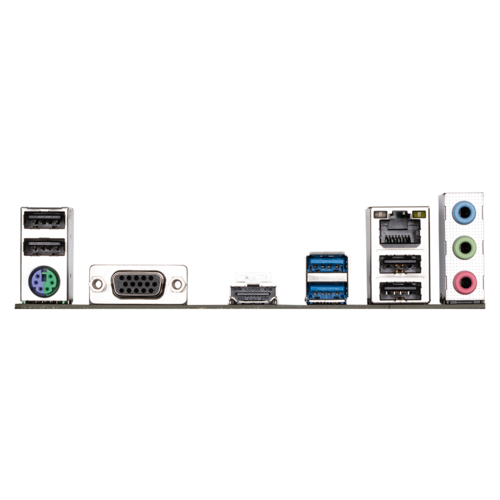

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed contro
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 22.6cm x 18.5cm
